IOP-DAPI-12243A-2 IOP-DAPI-24243A-2
Input 12Vdc to Output 24VAC Input 24Vdc to Output 24VAC
Input Current 6A~ Above Input Current 3A~ Above
Output 12VAC/2.5A--60W/100W Max Output 24VAC/2.5A--60W/100W Max
Specially designed for Speed Dome 24VAC AC power supply
Data Sheet   New release !! Data Sheet  New release !!

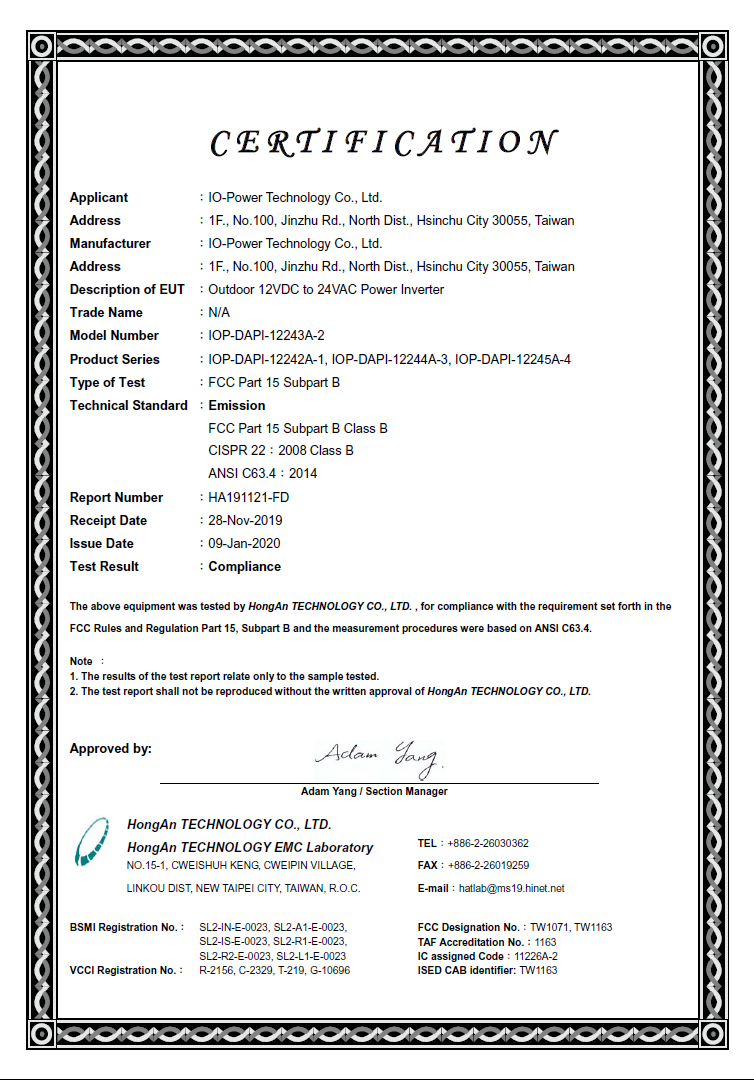

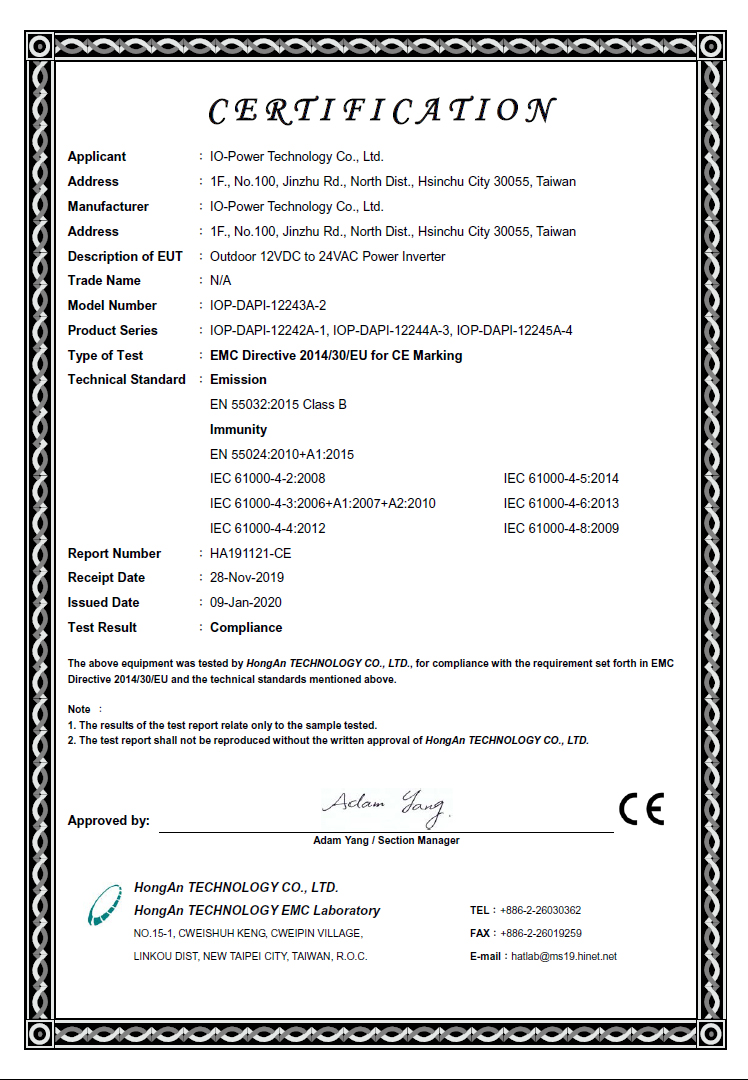

CE Certification FCC Certification

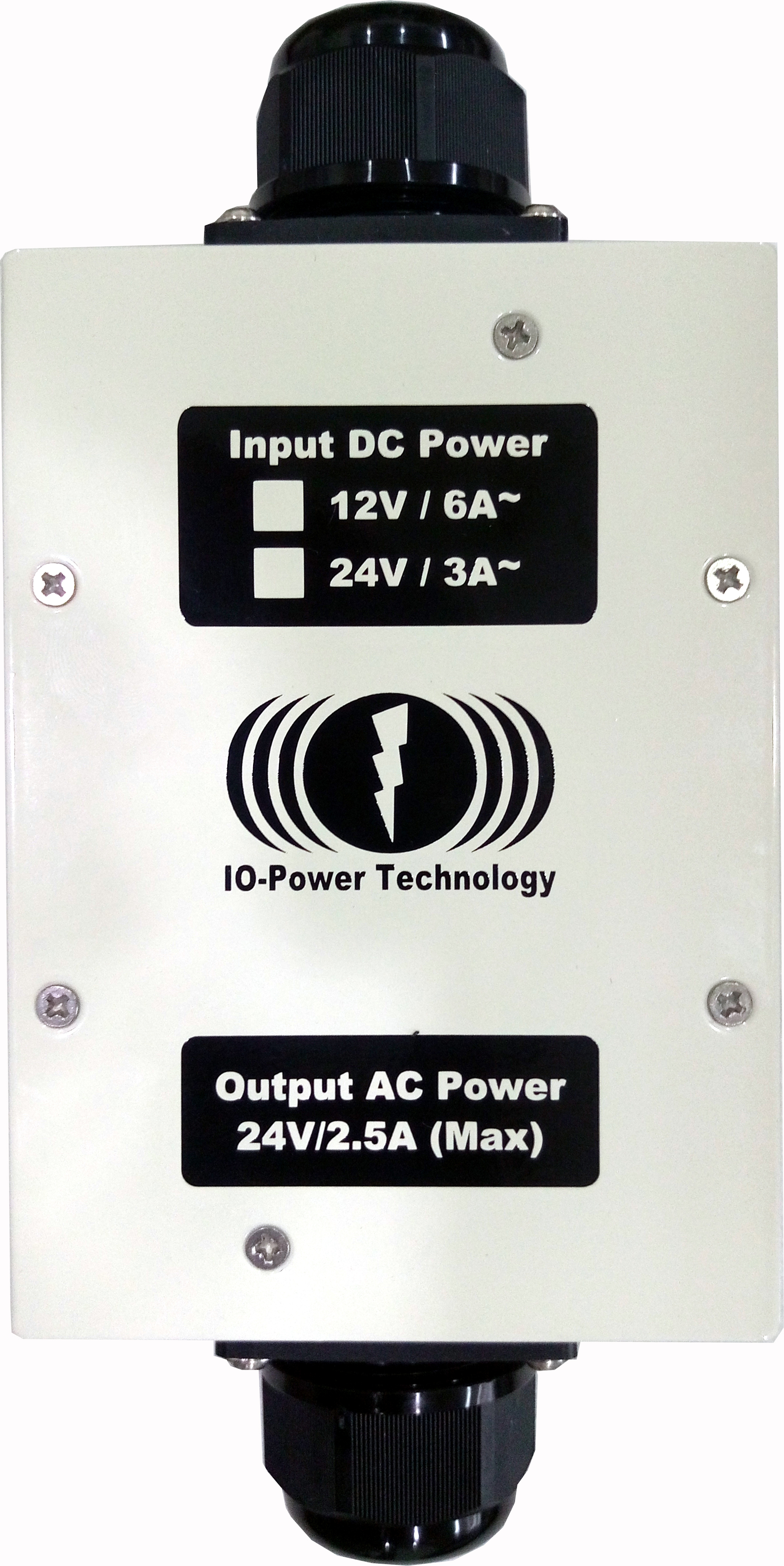

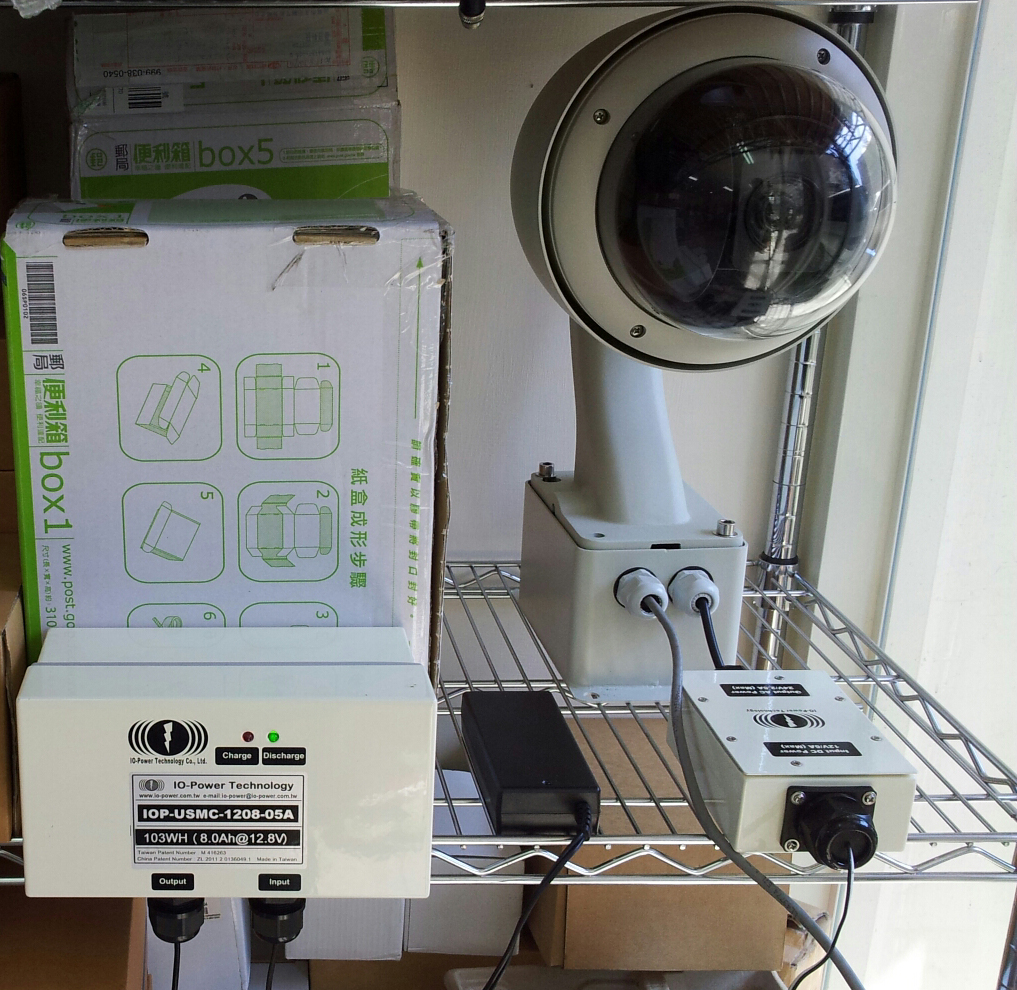

IO-Power IOP-DAPI-12243A-2

Outdoor 12VDC to 24VAC Power Inverter

Special Design for Speed Dome 24VAC Power Solution



IO-Power IOP-DAPI-12243A-2 is a specially designed outdoor DC to AC Inverter for 24VAC Speed Dome, adopting 12VDC input power, which is different from the usual adapter — input power 100~240VAC, output power 24VAC. It helps the system integrate (SI) easily collocate with 12VDC power source from the Outdoor DC UPS power system and 12VDC power source from the adapter (over 6A). It decreases the power transmission loss from DC to AC, then anther power transmission loss from 110VAC~240VAC to 24VAC (about 15%~30% loss of electricity). Therefore, IOP-DAPI-12243A-2 is especially suitable for green energy power system, such as solar power system and winder power system. The electricity loss it saves makes 30% of cost benefit for the whole power system.

DC to AC Inverter is adopted industrial level of Iron metal thermal protection shell and waterproof dust reached IP67 of mechanism design and the Waterproof and heat-resistant beam head to handle the outside tough temperature at -30°C ~ +70°C to maintain the outdoor system normally working during day and night.

IO-Power IOP-DAPI-12243A-2 adopts 12VDC input power of high current. The output of the conversion output is 60W and the peak power supply 100W maximum, enough for the normal Speed Dome which consumes 10~18W/H, and for the long-distance infrared rays Speed Dome, which consumes 18~35W/H. The 24VAC voltage and 2.5A current (and peak power supply 4A Max) can manage the transient current of Speed Dome which reaches 2~3A to reach the requirements of the Inverter of “Special Design for Speed Dome Power Solution”.

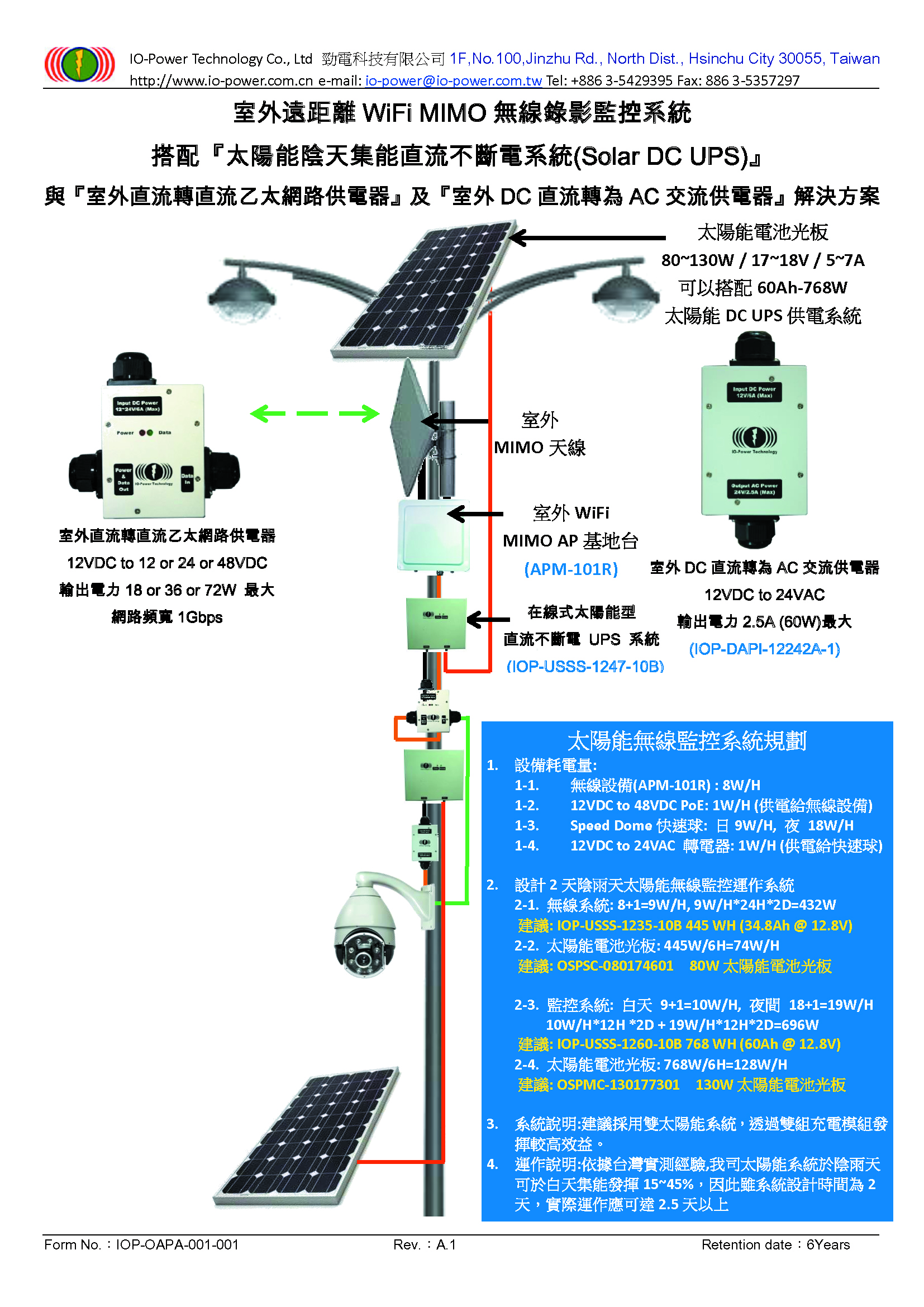

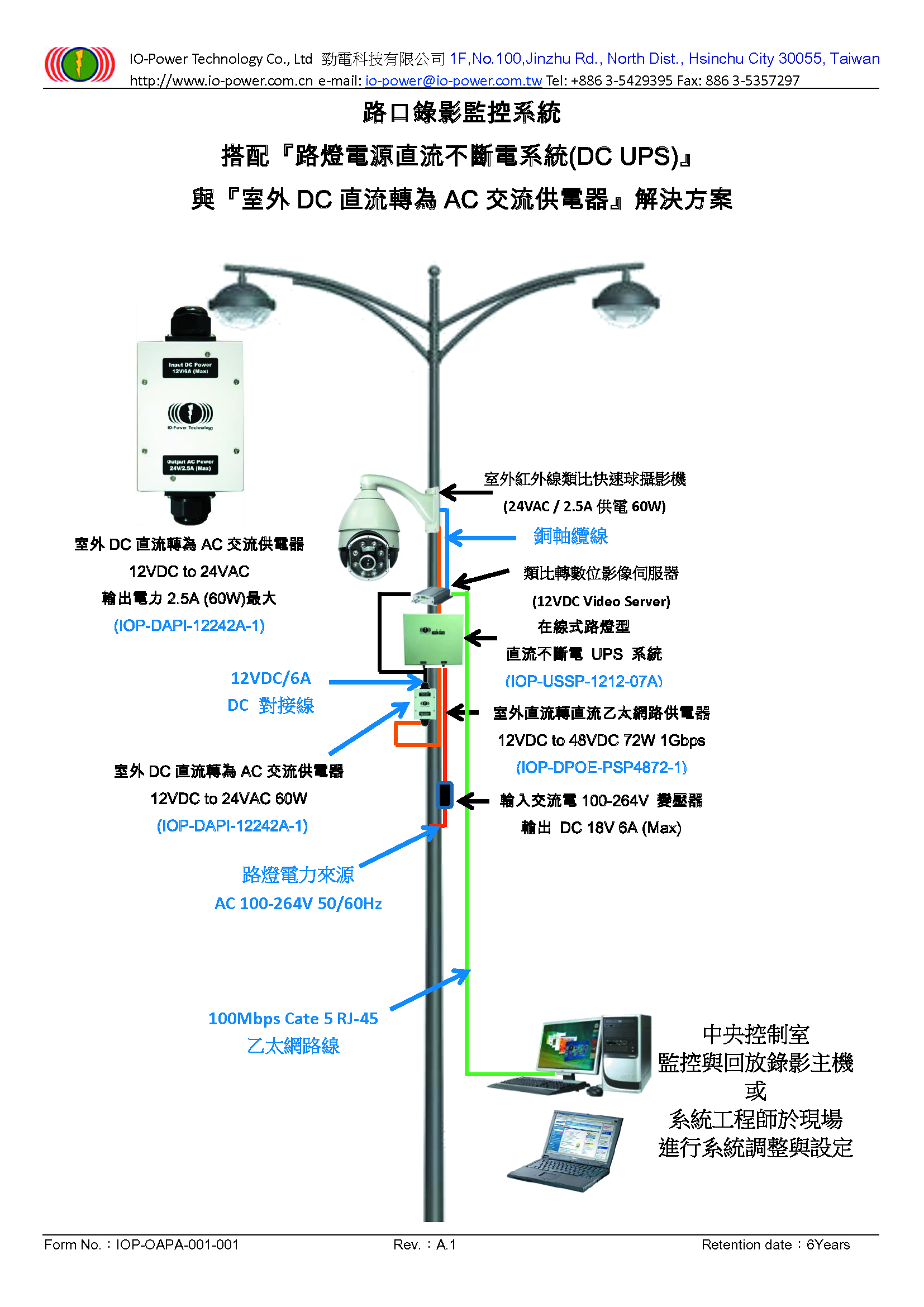

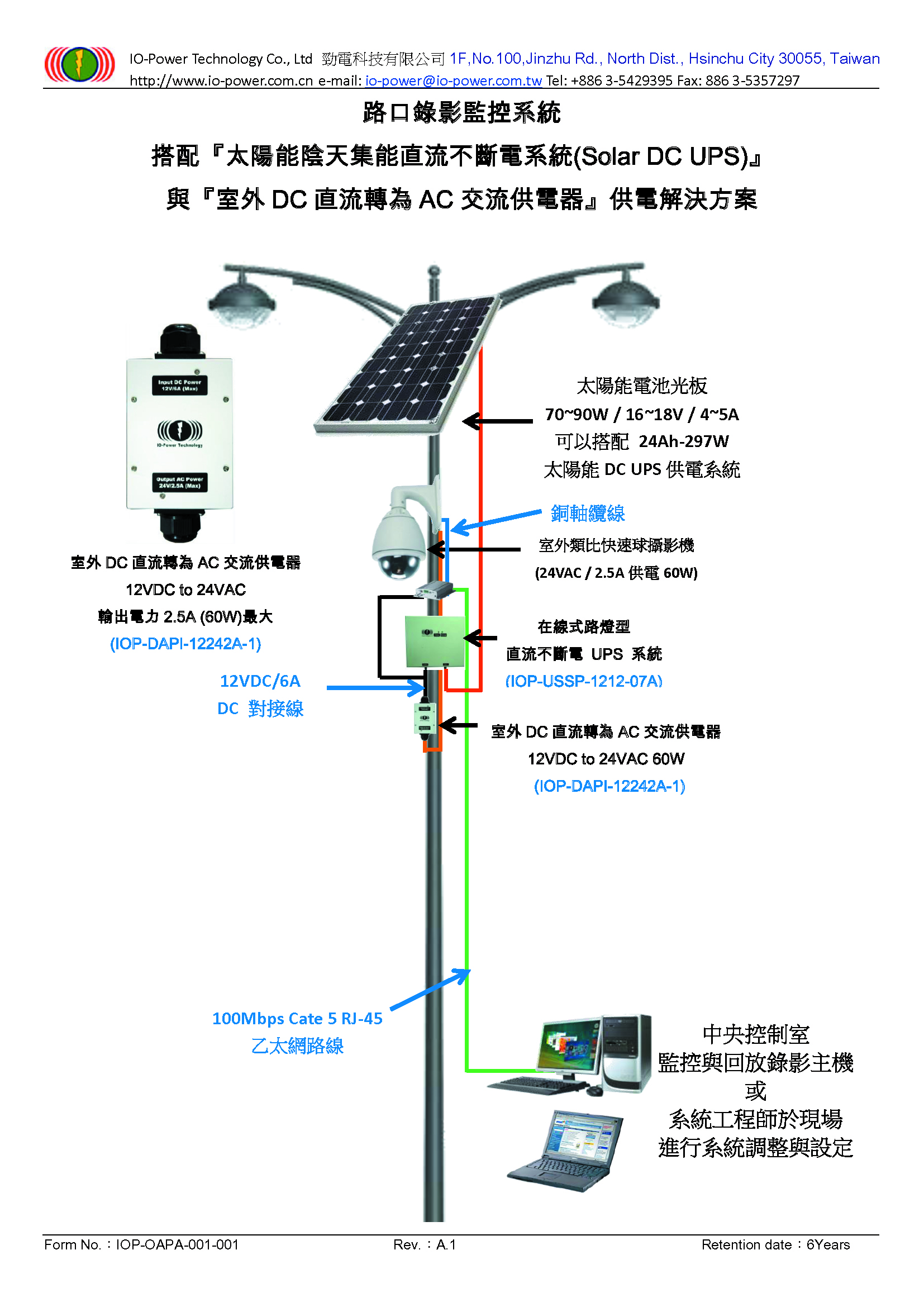

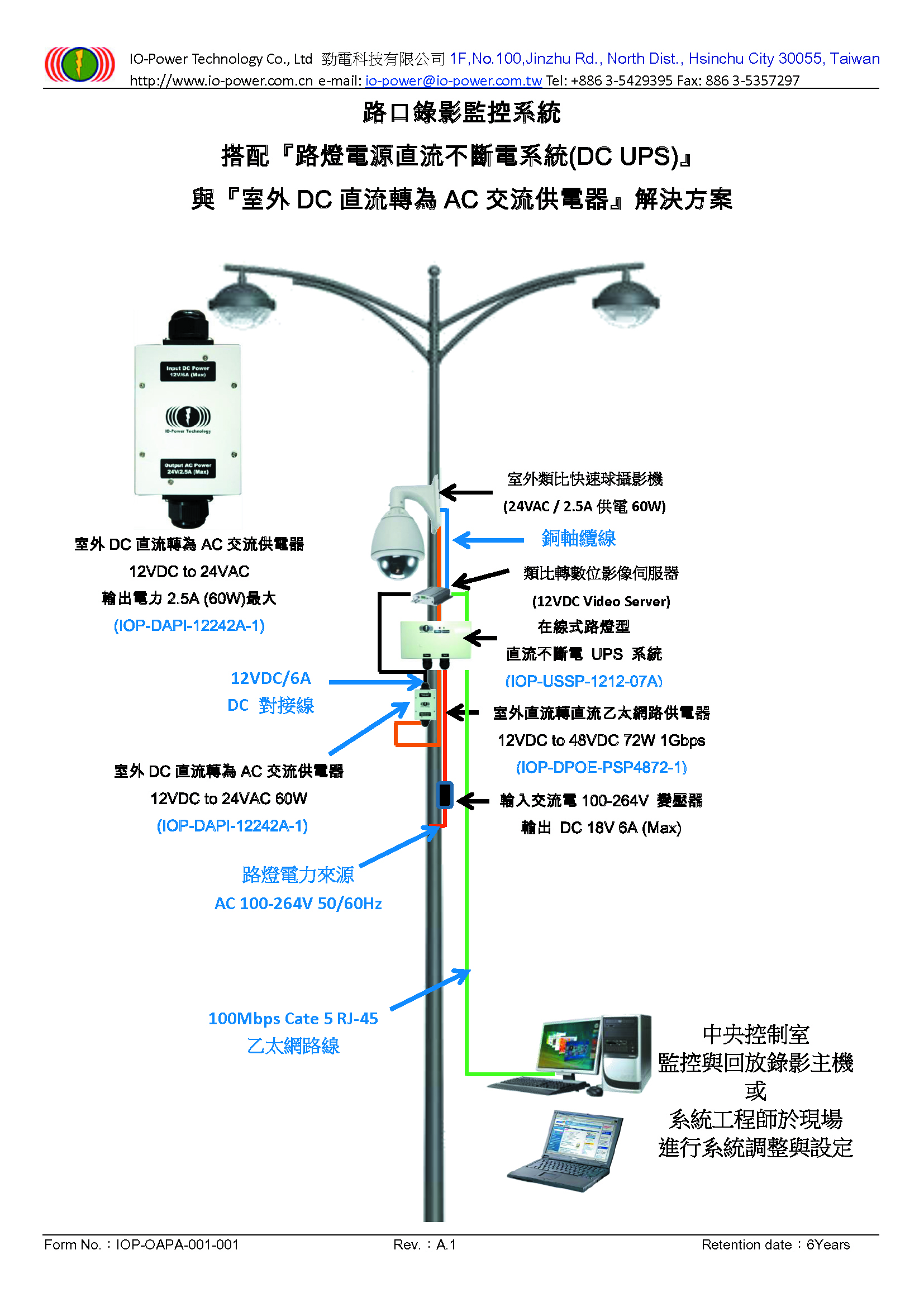

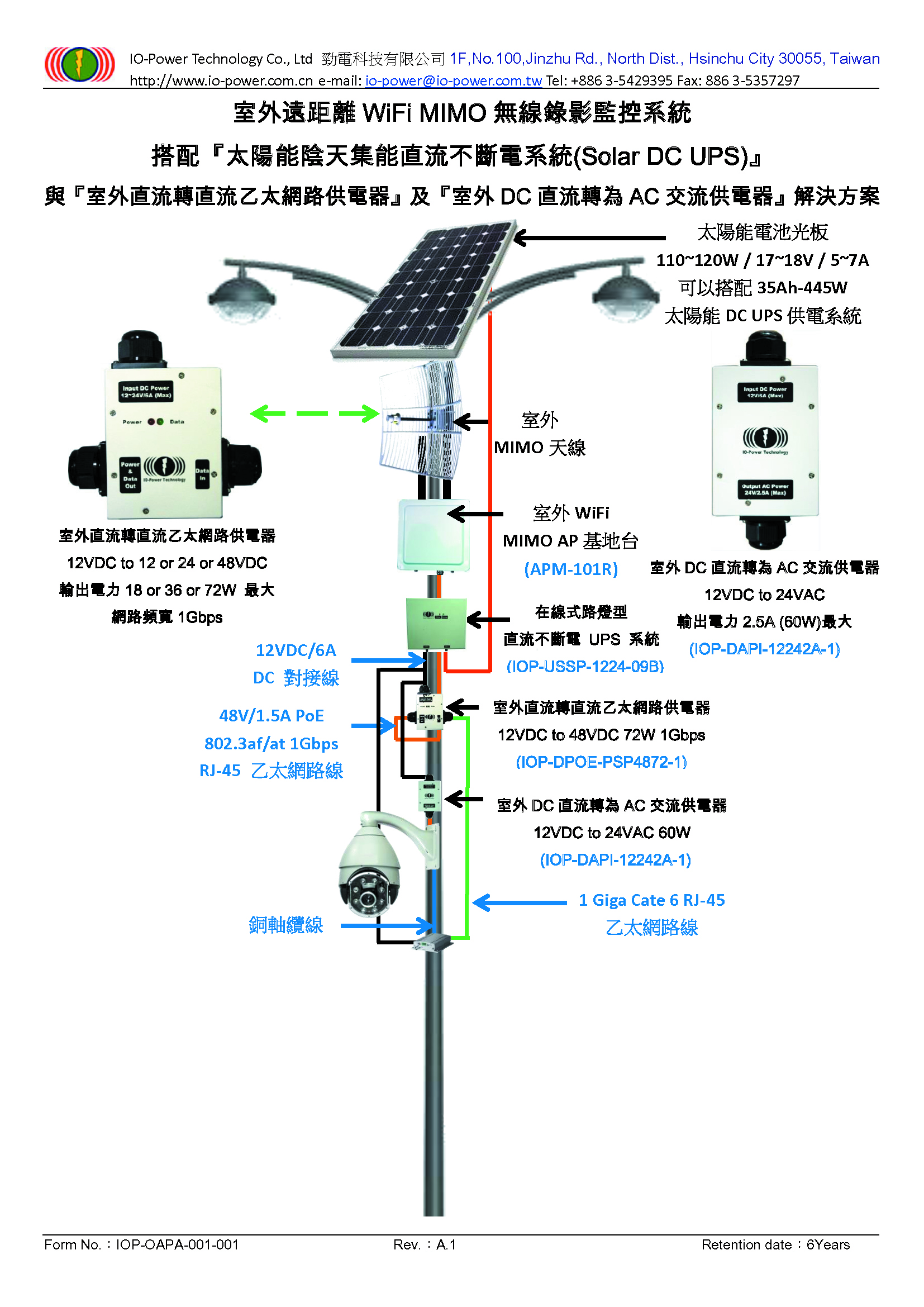

Adopting 12VDC input power can collocate with not only 12VDC power source from Outdoor DC UPS power systems, but also 12VDC power source from normal adapters (over 6A). Therefore, the applications are for 24VAC outdoor surveillance system, 24VAC outdoor emergency rescuing system, 24VAC mobile power supply system, 24VAC outdoor surveillance recording system, 24VAC outdoor public sign and indication system, 24VAC outdoor financial security system, 24VAC elevator security monitoring system, 24VAC fire security system, 24VAC expressway charges trading surveillance system, etc.

IOP-DAPI-12243A-2 Specification

Model Number

IOP-DAPI-12243A-2

Outdoor 12VDC to 24VAC

Iron Airtight Housing

IP 67



Input DC Voltage

12VDC (10VDC~15VDC Max)

**Before using, please confirm that the upper cover is marked with input 12Vdc / 6A~ or 24VDC / 3A~ voltage mode, please follow the instructions input voltage power supply.

Input DC Current

12VDC 6A~ (Recommended for 8A above will be better)

Output AC Voltage

24VAC (22VAC~28VAC Max)

Output AC Current

2.5A and peak power supply 4A Max

Output Power Frequency

47-63 Hz

Output Power Consume Watts

Operating power 60W and peak power supply 100W Max

Input Connector

DC Female Jack, 1mm spring leaf in Φ6.5mm, OD: 5.5mm / Pin ID: 2.0mm, insertion depth: 7.8mm

The chassis can be inserted into the joint depth: 30mm

Output Connector

DC Female Jack, 1mm spring leaf in Φ6.5mm, OD: 5.5mm / Pin ID: 2.0mm, insertion depth: 7.8mm

The chassis can be inserted into the joint depth: 30mm

DC Plug to DC Plug Connector Cable
(Newly added product accessories)

DC Plug to DC Plug Connector Cable : OD: 5.5mm / ID 2.1mm, Barrel Length: 29.2mm

Cable Length: 19cm, OD 5.0mm, 18AWG

Transform Efficiency

80% +-5%

Protection

Input power over current protection

Low input voltage protection

High input voltage protection

Output power over current protection

Short circuit protection

Imported power polarity protection for anti-welding

Power surge 5KVA protection

Industrial Housing & Connector

Iron Airtight Housing

IP 67 Gland Connector

** Top cover marked 12VDC / 6A ~ and 24VDC / 3A ~ of the shipping product input voltage mark distinction

Operating Temperature

-30°C ~ +70°C

Storage Temperature

-40°C ~ 80°C

Rel. Humidity

0~95%RH

Dimension

210mm(L) x 92mm(W) x 50mm(H)

Weight

0.5Kg (body); 0.7Kg (packing with fixing sheet)

Housing

IP67

Certification

CE : EMC Directive 2014/30/EU for CE Marking / EN55032:2015 Class B
FCC: FCC Part 15 Subpart B Class B / CISPR 22 : 2008 Class B / ANSI C63.4 : 2014

Installation

1.Street lamp pole mount or Upright pole mount
2.Wall mount installation

Warranty

12 months

Remark 1: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications

Remark 2: Before using, please confirm that the upper cover is marked with input 12Vdc / 6A ~ or 24VDC / 3A ~ voltage mode, please follow the instructions input voltage power supply.

IO-Power IOP-DAPI-24243A-2

Outdoor 24VDC to 24VAC Power Inverter

Special Design for Speed Dome 24VAC Power Solution



IO-Power IOP-DAPI-24243A-2 is a specially designed outdoor DC to AC Inverter for 24VAC Speed Dome, adopting 24VDC input power, which is different from the usual adapter — input power 100~240VAC, output power 24VAC. It helps the system integrate (SI) easily collocate with 24VDC power source from the Outdoor DC UPS power system and 24VDC power source from the adapter (over 5A). It decreases the power transmission loss from DC to AC, then anther power transmission loss from 110VAC~240VAC to 24VAC (about 15%~30% loss of electricity). Therefore, IOP-DAPI-24243A-2 is especially suitable for green energy power system, such as solar power system and winder power system. The electricity loss it saves makes 30% of cost benefit for the whole power system.

DC to AC Inverter is adopted industrial level of Iron metal thermal protection shell and waterproof dust reached IP67 of mechanism design and the Waterproof and heat-resistant beam head to handle the outside tough temperature at -30°C ~ +70°C to maintain the outdoor system normally working during day and night.

IO-Power IOP-DAPI-24243A-2 adopts 24VDC input power of high current. The output of the conversion output is 60W and the peak power supply 100W maximum, enough for the normal Speed Dome which consumes 10~18W/H, and for the long-distance infrared rays Speed Dome, which consumes 18~35W/H. The 24VAC voltage and 2.5A current (and peak power supply 4A Max) can manage the transient current of Speed Dome which reaches 2~3A to reach the requirements of the Inverter of “Special Design for Speed Dome Power Solution”.

Adopting 24VDC input power can collocate with not only 24VDC power source from Outdoor DC UPS power systems, but also 24VDC power source from normal adapters (over 5A). Therefore, the applications are for 24VAC outdoor surveillance system, 24VAC outdoor emergency rescuing system, 24VAC mobile power supply system, 24VAC outdoor surveillance recording system, 24VAC outdoor public sign and indication system, 24VAC outdoor financial security system, 24VAC elevator security monitoring system, 24VAC fire security system, 24VAC expressway charges trading surveillance system, etc.

IOP-DAPI-24243A-2 Specification

Model Number

IOP-DAPI-24243A-2

Outdoor 24VDC to 24VAC

Iron Airtight Housing

IP 67



Input DC Voltage

24VDC (20VDC~26VDC Max)

**Before using, please confirm that the upper cover is marked with input 12Vdc / 6A~ or 24Vdc / 3A~ voltage mode, please follow the instructions input voltage power supply.

Input DC Current

24VDC 3A~ (Recommended for 5A above will be better)

Output AC Voltage

24VAC (22VAC~28VAC Max)

Output AC Current

2.5A and peak power supply 4A Max

Output Power Frequency

47-63 Hz

Output Power Consume Watts

Operating power 60W and peak power supply 100W Max

Input Connector

DC Female Jack, 1mm spring leaf in Φ6.5mm, OD: 5.5mm / Pin ID: 2.0mm, insertion depth: 7.8mm

The chassis can be inserted into the joint depth: 30mm

Output Connector

DC Female Jack, 1mm spring leaf in Φ6.5mm, OD: 5.5mm / Pin ID: 2.0mm, insertion depth: 7.8mm

The chassis can be inserted into the joint depth: 30mm

DC Plug to DC Plug Connector Cable
(Newly added product accessories)

DC Plug to DC Plug Connector Cable : OD: 5.5mm / ID 2.1mm, Barrel Length: 29.2mm

Cable Length: 19cm, OD 5.0mm, 18AWG

Input Connector

DC Female Jack Pin OD: 2.1mm

Output Connector

DC Female Jack Pin OD: 2.1mm



Transform Efficiency

80% +-5%

Protection

Input power over current protection

Low input voltage protection

High input voltage protection

Output power over current protection

Short circuit protection

Imported power polarity protection for anti-welding

Power surge 5KVA protection

Industrial Housing & Connector

Iron Airtight Housing

IP 67 Gland Connector

** Top cover marked 12VDC / 6A ~ and 24VDC / 3A ~ of the shipping product input voltage mark distinction

Operating Temperature

-30°C ~ +70°C

Storage Temperature

-40°C ~ 80°C

Rel. Humidity

0~95%RH

Dimension

210mm(L) x 92mm(W) x 50mm(H)

Weight

0.5Kg (body); 0.7Kg (packing with fixing sheet)

Housing

IP67

Certification

CE : EMC Directive 2014/30/EU for CE Marking / EN55032:2015 Class A
FCC: FCC Part 15 Subpart B Class A / ANSI C63.4 : 2014

Installation

1.Street lamp pole mount or Upright pole mount
2.Wall mount installation

Warranty

12 months

Remark 1: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications

Remark 2: Before using, please confirm that the upper cover is marked with input 12Vdc / 6A ~ or 24VDC / 3A ~ voltage mode, please follow the instructions input voltage power supply.
